CRUD operations with interactive UI#

Flexible TreeView structure

Overview#

Modern applications demand intuitive, hierarchical interfaces that enable users to efficiently manage and interact with data. Many existing TreeView components lack the flexibility required for advanced scenarios, often forcing developers to write excessive boilerplate code and manually handle complex tree interactions.

Flexible TreeView provides a comprehensive solution for designing and implementing sophisticated hierarchical views and interactions. It streamlines development, increases productivity, and simplifies your codebase.

How Flexible TreeView helps#

Flexible TreeView accelerates your development process by offering:

  • Complex UI - Build advanced hierarchical interfaces in hours, not weeks.
  • Contextual data - Present relevant data dynamically based on node type.
  • In-place editing - Edit data directly within the tree structure—no need for separate forms.
  • Rich editor controls - Leverage built-in support for text fields, checkboxes, combo boxes, date pickers, and more.

Implementation#

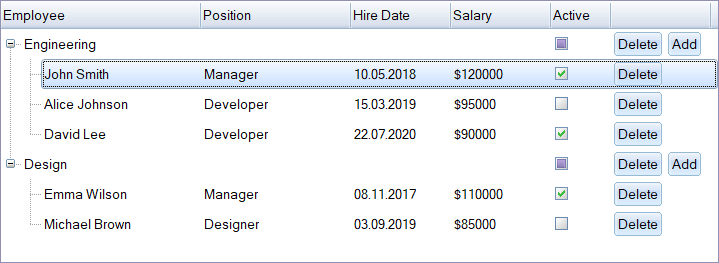

Here's how to implement the CRUD operations form with Flexible TreeView:

void RunUseCase()
{
    CreateTreeviewStructure();
    LoadEmployeesData();
}

void CreateTreeviewStructure()
{
    treeView.Theme = eVisualTheme.Office2007Blue;
    treeView.Options.Node.AutoNodeHeight = true;
    treeView.Options.NodeControl.NodeControlFilterMode = eNodeControlFilterMode.Dynamic;
    treeView.FilterNodeControl += FilterNodeControl;
    treeView.NodeButtonClicked += OnNodeButton_Click;

    TreeColumn nameColumn = new TreeColumn("Employee", 200);
    TreeColumn positionColumn = new TreeColumn("Position", 150);
    TreeColumn hireDateColumn = new TreeColumn("Hire Date", 100);
    TreeColumn salaryColumn = new TreeColumn("Salary", 100);
    TreeColumn activeColumn = new TreeColumn("Active", 60);
    TreeColumn actionsColumn = new TreeColumn("", 100);

    nameColumn.AttachTo(treeView);
    positionColumn.AttachTo(treeView);
    hireDateColumn.AttachTo(treeView);
    salaryColumn.AttachTo(treeView);
    activeColumn.AttachTo(treeView);
    actionsColumn.AttachTo(treeView);

    NodeTextBox nameControl = new NodeTextBox();
    nameControl.DataFieldName = "Text";
    nameControl.ApplyChangesOnLostFocus = true;
    nameControl.Editable = true;
    nameControl.AttachToColumn(nameColumn);
    nameControl.AttachTo(treeView);

    NodeComboBox positionControl = new NodeComboBox();
    positionControl.DataFieldName = "Position";
    positionControl.ApplyChangesOnLostFocus = true;
    positionControl.Editable = true;
    foreach (var position in _employeePositions)
    {
        positionControl.DropDownItems.Add(position);
    }
    positionControl.AttachToColumn(positionColumn);
    positionControl.AttachTo(treeView);

    NodeDateTime hireDateControl = new NodeDateTime();
    hireDateControl.DataFieldName = "HireDate";
    hireDateControl.ApplyChangesOnLostFocus = true;
    hireDateControl.Editable = true;
    hireDateControl.AttachToColumn(hireDateColumn);
    hireDateControl.AttachTo(treeView);

    NodeNumeric salaryControl = new NodeNumeric();
    salaryControl.DataFieldName = "Salary";
    salaryControl.ApplyChangesOnLostFocus = true;
    salaryControl.Editable = true;
    salaryControl.DecimalPlaces = 0;
    salaryControl.DisplayFormat.Enabled = true;
    salaryControl.DisplayFormat.FormatText = "${0}";
    salaryControl.AttachToColumn(salaryColumn);
    salaryControl.AttachTo(treeView);

    NodeCheckBox activeControl = new NodeCheckBox();
    activeControl.DataFieldName = "CheckState";
    activeControl.Editable = true;
    activeControl.AttachToColumn(activeColumn);
    activeControl.AttachTo(treeView);

    NodeButton deleteButton = new NodeButton();
    deleteButton.StaticValue = "Delete";
    deleteButton.Tag = "delete";
    deleteButton.AttachToColumn(actionsColumn);
    deleteButton.AttachTo(treeView);

    NodeButton addButton = new NodeButton();
    addButton.StaticValue = "Add";
    addButton.Tag = "add";
    addButton.AttachToColumn(actionsColumn);
    addButton.AttachTo(treeView);
}

void FilterNodeControl(FlexibleTreeView treeview, FilterNodeControlEventArgs args)
{
    if (!(args.NodeControl is BindableControl nodeControl))
        return;

    var isDepartmentNode = args.Node is DepartmentNode;

    // Hide non-relevant node controls for department nodes.
    if (isDepartmentNode)
    {
        if (nodeControl.DataFieldName is "Position" or "HireDate" or "Salary")
            args.ControlVisibility = eNodeControlVisibility.Hidden;
    }
    else
    {
        if (nodeControl is NodeButton button && button.Tag == "add")
            args.ControlVisibility = eNodeControlVisibility.Hidden;
    }
}

void LoadEmployeesData()
{
    treeView.Nodes.Clear();

    Dictionary<string, List<Employee>> departments = new Dictionary<string, List<Employee>>()
    {
        ["Engineering"] = new List<Employee>
        {
            new Employee("John Smith", "Manager", new DateTime(2018, 5, 10), 120000),
            new Employee("Alice Johnson", "Developer", new DateTime(2019, 3, 15), 95000),
            new Employee("David Lee", "Developer", new DateTime(2020, 7, 22), 90000)
        },
        ["Design"] = new List<Employee>
        {
            new Employee("Emma Wilson", "Manager", new DateTime(2017, 11, 8), 110000),
            new Employee("Michael Brown", "Designer", new DateTime(2019, 9, 3), 85000)
        }
    };

    foreach (var dept in departments)
    {
        var deptNode = new DepartmentNode(dept.Key)
        {
            CheckType = eCheckType.CheckBox,
            InteractiveCheckMode = eInteractiveCheckMode.ManualChangeDenied,
            ThreeCheckState = true
        };
        deptNode.AttachTo(treeView);

        bool isChecked = true;
        foreach (var emp in dept.Value)
        {
            var empNode = new EmployeeNode(emp.Name)
            {
                Position = _employeePositions.IndexOf(emp.Position),
                HireDate = emp.Hired,
                Salary = emp.Salary,
                Checked = isChecked
            };
            // make every second employee active.
            isChecked ^= true;
            empNode.AttachTo(deptNode);
        }
    }

    treeView.ExpandAll();
}

void AddEmployee(Node parent)
{
    var newEmployee = new EmployeeNode("New Employee")
    {
        Position = _employeePositions.IndexOf("Developer"),
        HireDate = DateTime.Today,
        Salary = 80000,
        Checked = true
    };

    newEmployee.AttachTo(parent);
    newEmployee.Focus();
}

void OnNodeButton_Click(FlexibleTreeView treeview, NodeControlEventArgs args)
{
    var node = args.Node;
    var opName = (string)args.NodeControl.Tag;

    if (opName == "add")
    {
        AddEmployee(args.Node);
        return;
    }

    if (opName == "delete")
    {
        var nodeTypeName = node is DepartmentNode ? "department" : "employee";

        if (MessageBox.Show($"Are you sure you want to delete this {nodeTypeName}?",
                "Confirm Delete", MessageBoxButtons.YesNo) == DialogResult.Yes)
        {
            node.Detach();
        }
    }
}

public class BusinessUnitNode : Node
{
    protected BusinessUnitNode(string name) : base(name)
    {
    }
}

public class EmployeeNode : BusinessUnitNode
{
    public int EmployeeId { get; set; }
    public int? Position { get; set; }
    public DateTime HireDate { get; set; }
    public decimal Salary { get; set; }

    public EmployeeNode(string name) : base(name)
    {
    }
}

public class DepartmentNode : BusinessUnitNode
{
    public DepartmentNode(string name) : base(name)
    {
    }
}

public class Employee
{
    public string Name { get; set; }
    public string Position { get; set; }
    public DateTime Hired { get; set; }
    public decimal Salary { get; set; }

    public Employee(string name, string position, DateTime hired, decimal salary)
    {
        Name = name;
        Position = position;
        Hired = hired;
        Salary = salary;
    }
}
Sub RunUseCase()
    CreateTreeviewStructure()
    LoadEmployeesData()
End Sub

Sub CreateTreeviewStructure()
    treeView.Theme = eVisualTheme.Office2007Blue
    treeView.Options.Node.AutoNodeHeight = True
    treeView.Options.NodeControl.NodeControlFilterMode = eNodeControlFilterMode.Dynamic
    AddHandler treeView.FilterNodeControl, AddressOf FilterNodeControl
    AddHandler treeView.NodeButtonClicked, AddressOf OnNodeButton_Click

    Dim nameColumn As New TreeColumn("Employee", 200)
    Dim positionColumn As New TreeColumn("Position", 150)
    Dim hireDateColumn As New TreeColumn("Hire Date", 100)
    Dim salaryColumn As New TreeColumn("Salary", 100)
    Dim activeColumn As New TreeColumn("Active", 60)
    Dim actionsColumn As New TreeColumn("", 100)

    nameColumn.AttachTo(treeView)
    positionColumn.AttachTo(treeView)
    hireDateColumn.AttachTo(treeView)
    salaryColumn.AttachTo(treeView)
    activeColumn.AttachTo(treeView)
    actionsColumn.AttachTo(treeView)

    Dim nameControl As New NodeTextBox()
    nameControl.DataFieldName = "Text"
    nameControl.ApplyChangesOnLostFocus = True
    nameControl.Editable = True
    nameControl.AttachToColumn(nameColumn)
    nameControl.AttachTo(treeView)

    Dim positionControl As New NodeComboBox()
    positionControl.DataFieldName = "Position"
    positionControl.ApplyChangesOnLostFocus = True
    positionControl.Editable = True
    For Each position In _employeePositions
        positionControl.DropDownItems.Add(position)
    Next
    positionControl.AttachToColumn(positionColumn)
    positionControl.AttachTo(treeView)

    Dim hireDateControl As New NodeDateTime()
    hireDateControl.DataFieldName = "HireDate"
    hireDateControl.ApplyChangesOnLostFocus = True
    hireDateControl.Editable = True
    hireDateControl.AttachToColumn(hireDateColumn)
    hireDateControl.AttachTo(treeView)

    Dim salaryControl As New NodeNumeric()
    salaryControl.DataFieldName = "Salary"
    salaryControl.ApplyChangesOnLostFocus = True
    salaryControl.Editable = True
    salaryControl.DecimalPlaces = 0
    salaryControl.DisplayFormat.Enabled = True
    salaryControl.DisplayFormat.FormatText = "${0}"
    salaryControl.AttachToColumn(salaryColumn)
    salaryControl.AttachTo(treeView)

    Dim activeControl As New NodeCheckBox()
    activeControl.DataFieldName = "CheckState"
    activeControl.Editable = True
    activeControl.AttachToColumn(activeColumn)
    activeControl.AttachTo(treeView)

    Dim deleteButton As New NodeButton()
    deleteButton.StaticValue = "Delete"
    deleteButton.Tag = "delete"
    deleteButton.AttachToColumn(actionsColumn)
    deleteButton.AttachTo(treeView)

    Dim addButton As New NodeButton()
    addButton.StaticValue = "Add"
    addButton.Tag = "add"
    addButton.AttachToColumn(actionsColumn)
    addButton.AttachTo(treeView)
End Sub

Sub FilterNodeControl(treeview As FlexibleTreeView, args As FilterNodeControlEventArgs)
    Dim nodeControl As BindableControl = TryCast(args.NodeControl, BindableControl)
    If nodeControl Is Nothing Then
        Return
    End If

    Dim isDepartmentNode = TypeOf args.Node Is DepartmentNode

    ' Hide non-relevant node controls for department nodes.
    If isDepartmentNode Then
        If nodeControl.DataFieldName = "Position" OrElse nodeControl.DataFieldName = "HireDate" OrElse nodeControl.DataFieldName = "Salary" Then
            args.ControlVisibility = eNodeControlVisibility.Hidden
        End If
    Else
        Dim button As NodeButton = TryCast(nodeControl, NodeButton)
        If button IsNot Nothing AndAlso button.Tag = "add" Then
            args.ControlVisibility = eNodeControlVisibility.Hidden
        End If
    End If
End Sub

Sub LoadEmployeesData()
    treeView.Nodes.Clear()

    Dim departments As New Dictionary(Of String, List(Of Employee)) From {
        {"Engineering", New List(Of Employee) From {
            New Employee("John Smith", "Manager", New DateTime(2018, 5, 10), 120000),
            New Employee("Alice Johnson", "Developer", New DateTime(2019, 3, 15), 95000),
            New Employee("David Lee", "Developer", New DateTime(2020, 7, 22), 90000)
        }},
        {"Design", New List(Of Employee) From {
            New Employee("Emma Wilson", "Manager", New DateTime(2017, 11, 8), 110000),
            New Employee("Michael Brown", "Designer", New DateTime(2019, 9, 3), 85000)
        }}
    }

    For Each dept In departments
        Dim deptNode As New DepartmentNode(dept.Key) With {
            .CheckType = eCheckType.CheckBox,
            .InteractiveCheckMode = eInteractiveCheckMode.ManualChangeDenied,
            .ThreeCheckState = True
        }
        deptNode.AttachTo(treeView)

        Dim isChecked As Boolean = True
        For Each emp In dept.Value
            Dim empNode As New EmployeeNode(emp.Name) With {
                .Position = _employeePositions.IndexOf(emp.Position),
                .HireDate = emp.Hired,
                .Salary = emp.Salary,
                .Checked = isChecked
            }
            ' make every second employee active.
            isChecked = Not isChecked
            empNode.AttachTo(deptNode)
        Next
    Next

    treeView.ExpandAll()
End Sub

Sub AddEmployee(parent As Node)
    Dim newEmployee As New EmployeeNode("New Employee") With {
        .Position = _employeePositions.IndexOf("Developer"),
        .HireDate = DateTime.Today,
        .Salary = 80000,
        .Checked = True
    }

    newEmployee.AttachTo(parent)
    newEmployee.Focus()
End Sub

Sub OnNodeButton_Click(treeview As FlexibleTreeView, args As NodeControlEventArgs)
    Dim node = args.Node
    Dim opName As String = CStr(args.NodeControl.Tag)

    If opName = "add" Then
        AddEmployee(args.Node)
        Return
    End If

    If opName = "delete" Then
        Dim nodeTypeName As String = If(TypeOf node Is DepartmentNode, "department", "employee")

        If MessageBox.Show($"Are you sure you want to delete this {nodeTypeName}?",
                "Confirm Delete", MessageBoxButtons.YesNo) = DialogResult.Yes Then
            node.Detach()
        End If
    End If
End Sub

Public Class BusinessUnitNode
    Inherits Node

    Protected Sub New(name As String)
        MyBase.New(name)
    End Sub
End Class

Public Class EmployeeNode
    Inherits BusinessUnitNode

    Public Property EmployeeId As Integer
    Public Property Position As Integer?
    Public Property HireDate As DateTime
    Public Property Salary As Decimal

    Public Sub New(name As String)
        MyBase.New(name)
    End Sub
End Class

Public Class DepartmentNode
    Inherits BusinessUnitNode

    Public Sub New(name As String)
        MyBase.New(name)
    End Sub
End Class

Public Class Employee
    Public Property Name As String
    Public Property Position As String
    Public Property Hired As DateTime
    Public Property Salary As Decimal

    Public Sub New(name As String, position As String, hired As DateTime, salary As Decimal)
        Me.Name = name
        Me.Position = position
        Me.Hired = hired
        Me.Salary = salary
    End Sub
End Class

Best Practices#

This use case demonstrates several key techniques for building interactive CRUD interfaces:

  • Use node classes hierarchy - Create distinct node classes (DepartmentNode, EmployeeNode) inheriting from a common base to support mixed hierarchical data and apply different behaviors per node type
  • Dynamic control filtering - Use FilterNodeControl treeview event to dynamically show/hide node controls based on node context to maintain clean UI
  • In-place editing - Enable ApplyChangesOnLostFocus for immediate data changes persistence when the user clicks outside of the node control editor
  • Intuitive action controls - Use NodeButton with meaningful Tag values to distinguish between different operations in a single event handler
  • Data formatting - Configure DisplayFormat for numeric node controls
  • Interactive check state - Use InteractiveCheckMode.ManualChangeDenied with ThreeCheckState = true for parent nodes that aggregate child check states
